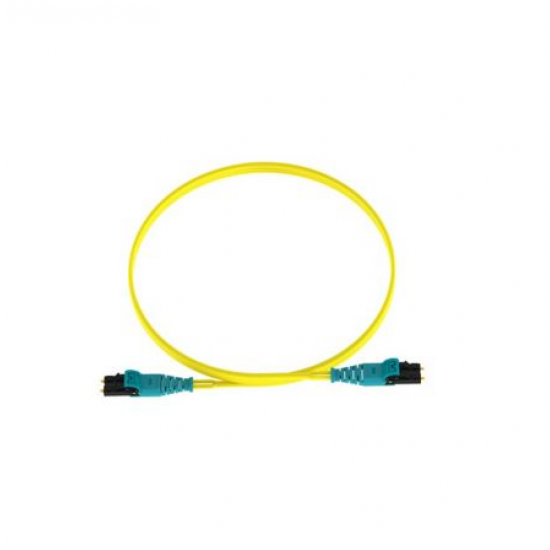

Panduit Panduit OS1/OS2 2-fiber, 1.6mm jacket, LSZH, LC push-pull to LC push-pull patch cord, Std. IL, 3m

Panduit Panduit OS1/OS2 2-fiber, 1.6mm jacket, LSZH, LC push-pull to LC push-pull patch cord, Std. IL, 3m
Panduit Panduit OS1/OS2 2-fiber, 1.6mm jacket, LSZH, LC push-pull to LC push-pull patch cord, Std. IL, 3m
Based on 0 reviews. - Write a review
S$3.30
Ex Tax: S$3.03
  • Stock: 55
  • Model: F92ELQNQNSNM003
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

The duplex fiber patch cord is OS2 with a 1.6mm cable jacket. It is Low Smoke Zero Halogen (LSZH), features LC push pull connectors, has standard insertion loss and is 2 meters in length.


Fiber Type
OS1/OS2
Number of Fibers
2
Connector 1 Type
LC Duplex
Connector 2 Type
LC Duplex
Flammability Rating
LSZH
Maximum Connector Insertion Loss (dB)
0.35
Minimum Connector Return Loss (dB)
55
Overall Length (ft.)
6.56
Overall Length (m)
3
Fiber Diameter (µm)
9
Outer Diameter (In.)
0.06
Outer Diameter (mm)
1.6
Maximum Operating Temperature (°C)
60
Maximum Operating Temperature (°F)
140
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Maximum Installation Temperature (°C)
60
Maximum Installation Temperature (°F)
140
Minimum Installation Temperature (°C)
-10
Minimum Installation Temperature (°F)
14
Resistance Properties
Flame-Resistant
Cable Color
Yellow
Standards Met
RoHS Compliant, Meets or exceeds ISO/IEC 11801, TIA-568-C.3, TIA-604-10 (FOCIS-10)
Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunication rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Body Style
Duplex
Product Type
Fiber Optic Patch Cord
Sub Brand
Opti-Core®

Data Sheet
