Panduit Panduit OM4 2f 1.6mm PC OFNR LC Dup/SC Dup Std Polarity Std IL, 10m

Panduit Panduit OM4 2f 1.6mm PC OFNR LC Dup/SC Dup Std Polarity Std IL, 10m
Panduit Panduit OM4 2f 1.6mm PC OFNR LC Dup/SC Dup Std Polarity Std IL, 10m
Based on 0 reviews. - Write a review
S$6.66
Ex Tax: S$6.11
  • Stock: 1
  • Model: FZ2ERLNSNSNM010
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

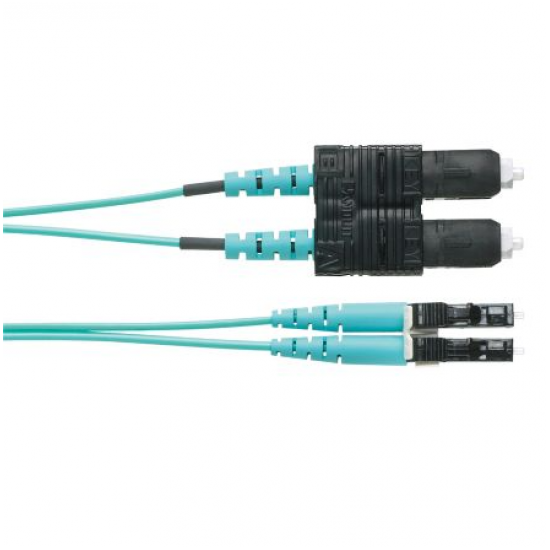

OM4 2-fiber 1.6mm, jacket, patchcord, Riser (OFNR), LC duplex to SC duplex, Std. IL.


Fiber Type
OM4
Number of Fibers
2
Connector 1 Type
LC Duplex
Connector 2 Type
SC Duplex
Flammability Rating
Riser
Maximum Connector Insertion Loss (dB)
0.25
Minimum Connector Return Loss (dB)
26
Overall Length (ft.)
32.81
Overall Length (m)
10
Fiber Diameter (µm)
50
Outer Diameter (In.)
0.0629921
Outer Diameter (mm)
1.6
Maximum Operating Temperature (°C)
70
Maximum Operating Temperature (°F)
158
Minimum Operating Temperature (°C)
-20
Minimum Operating Temperature (°F)
-4
Maximum Installation Temperature (°C)
70
Maximum Installation Temperature (°F)
158
Minimum Installation Temperature (°C)
-20
Minimum Installation Temperature (°F)
-4
Resistance Properties
Flame-Resistant
Cable Color
Aqua
Standards Met
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord components meet the requirements of Directive 2002/95/EC.
Application
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Body Style
Duplex
Product Type
Fiber Optic Patch Cord
Sub Brand
Opti-Core

Data Sheet
