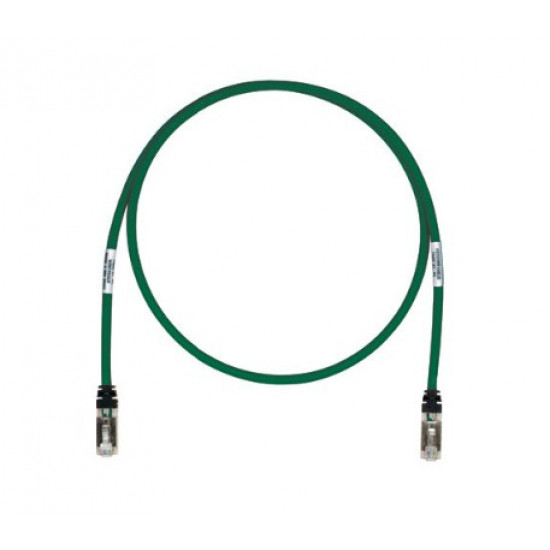

Panduit Pan-Net® Patch Cord Green 3m

Panduit Pan-Net® Patch Cord Green 3m
Panduit Pan-Net® Patch Cord Green 3m
Based on 0 reviews. - Write a review
S$2.99
Ex Tax: S$2.74
  • Stock: 2
  • Model: STP6C3MGR
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

Category 6a patch cord with 26 AWG unshielded twisted paired stranded copper cable with an enhanced performance shielded modular plug at each end. Patch cord is compatible with both T568A and T568B wiring schemes. 100% performance tested for wire map, NEXT, and return loss, delivering high level performance.


Application
(1) Stacking switched and switch-to-switch links (2) Aggregation of Gigabit Ethernet channels (3) Streaming video (4) Scientific modeling (5) Storage area networks (6) Real-time intensive financial transactions (7) Animation (8) Medical imaging
Product Type
Patch Cord
Conductor Gauge (AWG)
26
Conductor Gauge (kcmil)
0.2
Sub Brand
Pan-Net®
Performance Level
Category 6A
Conductor Type
Stranded
Cable Construction
F/UTP
Patch Cord Type
Shielded
Plug Housing Material
Polycarbonate
Jacket Material
Polyvinyl Chloride
Connector 1 Type
Modular Plug
Connector 2 Type
Modular Plug
Overall Length (m)
3
Nominal Cable Outside Diameter (mm)
6.4
Wiring Scheme
T568B
Maximum Operating Temperature (°C)
60
Minimum Operating Temperature (°C)
-10
Maximum Storage Temperature (°C)
70
Minimum Storage Temperature (°C)
-40
Boot Color
Green
Color
Green
Flammability Rating
Dual Rated (CM/LSZH)
Standards Met
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
IEC Variant
60603-7
PoE Compatibility
PoE/PoE+/PoE++
Plug Type
8 Position
Data Sheet
