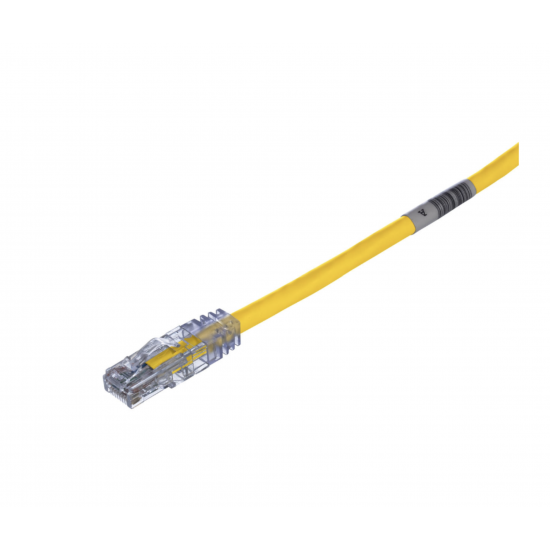

Panduit Copper Patch Cord, Cat 6, 24AWG, Yellow UTP Cable, 7 Meter

Panduit Copper Patch Cord, Cat 6, 24AWG, Yellow UTP Cable, 7 Meter
Panduit Copper Patch Cord, Cat 6, 24AWG, Yellow UTP Cable, 7 Meter
Based on 0 reviews. - Write a review
S$1.99
Ex Tax: S$1.83
  • Stock: 156
  • Model: UTPSP7MYLY
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

For reliable network connections, choose our Category 6 UTP patch cord. Enjoy easy installation, tangle-free use, and quick port identification with our compact design technology in metric lengths.


Product TypePatch Cord
Sub BrandPan-Net®
Application                                                                                                     (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)
(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16
(3) Digital video and broadband/baseband analog video
(4) Voice over Internet Protocol (VoIP)
Conductor Gauge24 AWG
Performance LevelCategory 6
Conductor TypeStranded
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Jacket MaterialPVC
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)23
Overall Length (m)7
Nominal Cable Outside Diameter (In.)0.235
Nominal Cable Outside Diameter (mm)6
Wiring SchemeRJ45/T568B
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorClear
ColorYellow
Flammability RatingCM
Standards Met                                                                                                                                                                                                            Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
IEC Variant60603-7
PoE CompatibilityPoE/PoE+/PoE++
Plug Type8 Position
RapidID™ EnabledYes
Part Features                                                                   100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
