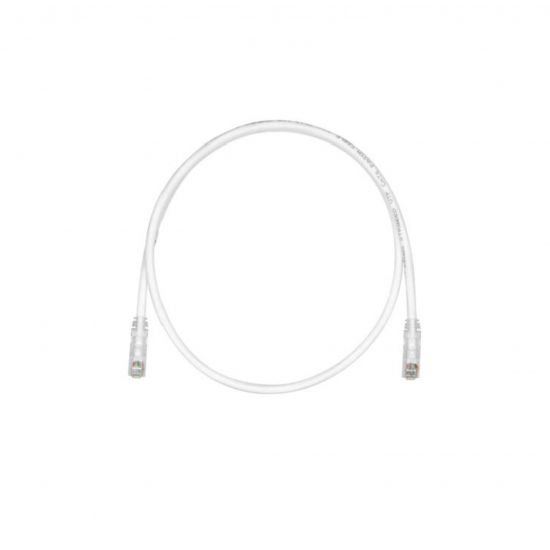

Panduit Copper Patch Cord, Cat 6, 24AWG, Gray UTP Cable, 8 Meter

Panduit Copper Patch Cord, Cat 6, 24AWG, Gray UTP Cable, 8 Meter
Panduit Copper Patch Cord, Cat 6, 24AWG, Gray UTP Cable, 8 Meter
Based on 0 reviews. - Write a review
S$1.99
Ex Tax: S$1.83
  • Stock: 40
  • Model: UTPSP8MGYY
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

For reliable network connections, choose our Category 6 UTP patch cord. Enjoy easy installation, tangle-free use, and quick port identification with our compact design technology in metric lengths.


Product TypePatch Cord
Sub BrandPan-Net®
Application                                                                                                        (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)
(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM
(3) Token ring 4/16
(4) Digital video and broadband/basebandanalog video
(5) Voice over Internet Protocol (VoIP)
Conductor Gauge24 AWG
Performance LevelCategory 6
Conductor TypeStranded
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)26.24
Overall Length (m)8
Nominal Cable Outside Diameter (In.)0.235
Nominal Cable Outside Diameter (mm)6
Wiring SchemeRJ45/T568B
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorClear
ColorInternational Gray
Flammability RatingCM
Standards Met                                                                                                                                    Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS compliant
IEC Variant60603-7
PoE CompatibilityPoE/PoE+/PoE++
Plug Type8 Position
RapidID™ EnabledYes
Part Features                                                                      100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
