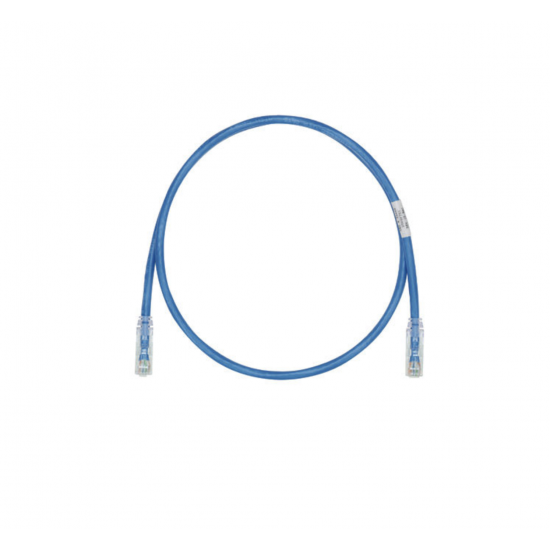

Panduit Copper Patch Cord, Cat 6, 24AWG, Blue LSZH UTP Cable, 12 Meter

Panduit Copper Patch Cord, Cat 6, 24AWG, Blue LSZH UTP Cable, 12 Meter
Panduit Copper Patch Cord, Cat 6, 24AWG, Blue LSZH UTP Cable, 12 Meter
Based on 0 reviews. - Write a review
S$1.99
Ex Tax: S$1.83
  • Stock: 5
  • Model: UTPSPL12MBUY
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

For reliable network connections, choose our Category 6 UTP patch cord. Enjoy easy installation, tangle-free use, and quick port identification with our compact design technology in metric lengths.


Product TypePatch Cord
Sub BrandPan-Net®
Application                                                      (1) Ethernet 10BASE-T
(2) 100BASE-T (Fast Ethernet)
(3) 1000BASE-T (Gigabit Ethernet)
(4) 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)
(5) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM
(6) Token ring 4/16
(7) Digital video and broadband/baseband analog video(8) Voice over Internet Protocol (VoIP)
Conductor Gauge24 AWG
Performance LevelCategory 6
Conductor TypeStranded
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Jacket MaterialLSZH Material
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)39.37
Overall Length (m)12
Nominal Cable Outside Diameter (In.)0.235
Nominal Cable Outside Diameter (mm)6
Wiring SchemeRJ45/T568B
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorClear
ColorBlue
Flammability RatingLSZH
Standards Met                                                                         Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863 approved; CE Compliant; RoHS compliant
IEC Variant60603-7
PoE CompatibilityPoE
Plug Type8 Position
RapidID™ EnabledYes
Part Features                                                                    100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
