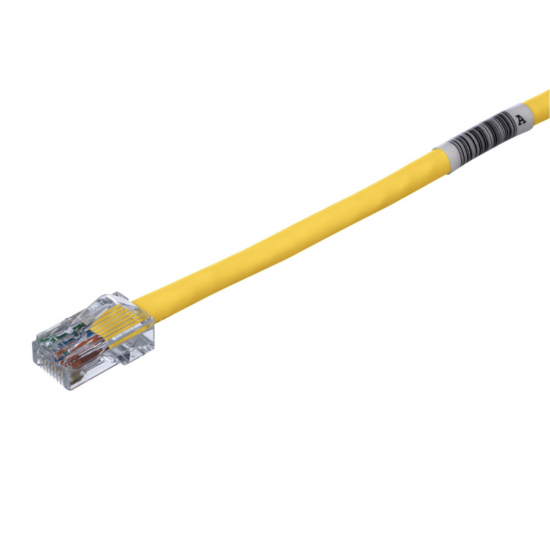

Panduit Copper Patch Cord, Cat 5e, Yellow UTP Cable, 1 Meter

Panduit Copper Patch Cord, Cat 5e, Yellow UTP Cable, 1 Meter
Super Deals
Panduit Copper Patch Cord, Cat 5e, Yellow UTP Cable, 1 Meter
Based on 0 reviews. - Write a review
S$0.99
Ex Tax: S$0.91
  • Stock: 24
  • Model: UTPCH1MYLY
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

Streamline your network setup with our versatile, tangle-free Category 5e UTP patch cord, available in a variety of metric lengths and colors for easy organization and identification.


Product TypePatch Cord
Sub BrandPan-Net®
Application                                   (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)
(2) 155 Mb/s ATM, 622 Mb/s ATM
(3) Token ring 4/16
(4) Voice/data systems
(5) Voice over Internet Protocol (VoIP)
Conductor Gauge24 AWG
Performance LevelCategory 5e
Conductor TypeStranded
Cable ConstructionU/UTP
Shield TypeUnshielded (UTP)
Plug Housing MaterialPolycarbonate
Jacket MaterialPVC
Connector 1 TypeModular Plug
Connector 2 TypeModular Plug
Overall Length (ft.)3.3
Overall Length (m)1
Nominal Cable Outside Diameter (In.)0.215
Nominal Cable Outside Diameter (mm)5.5
Wiring SchemeRJ45/T568A
Maximum Operating Temperature (°C)60
Maximum Operating Temperature (°F)140
Minimum Operating Temperature (°C)-10
Minimum Operating Temperature (°F)14
Maximum Storage Temperature (°C)70
Maximum Storage Temperature (°F)158
Minimum Storage Temperature (°C)-40
Minimum Storage Temperature (°F)-40
Boot ColorNo Boot
ColorYellow
Flammability RatingCM
Standards Met                                                                                                                                                                                                                  Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
IEC Variant60603-7
PoE CompatibilityPoE/PoE+/PoE++
Plug Type8 Position
RapidID™ EnabledYes
Part Features                                                                     100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
