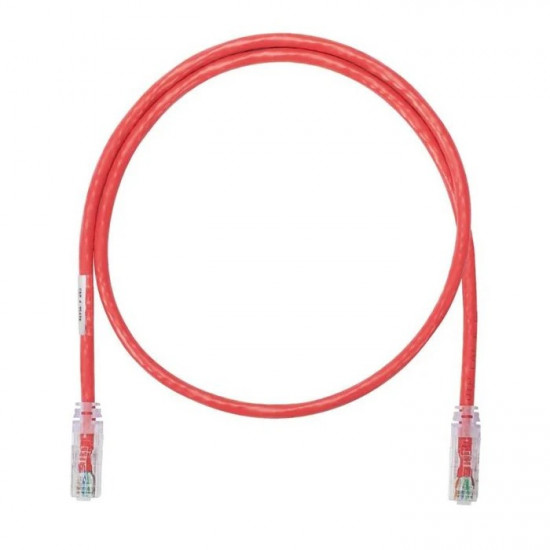

Panduit Cat 6A 28AWG UTP Patch Cord, CM/LSZH, Red, 6 meter

Panduit Cat 6A 28AWG UTP Patch Cord, CM/LSZH, Red, 6 meter
Super Deals
Panduit Cat 6A 28AWG UTP Patch Cord, CM/LSZH, Red, 6 meter
Based on 0 reviews. - Write a review
S$2.99
Ex Tax: S$2.74
  • Stock: 2
  • Model: UTP28X6MRD
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

Category 6A Performance, 28AWG, UTP Patch Cord, CM/LSZH, Red, 6m.


Application
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing
Product Type
Patch Cord
Conductor Gauge (AWG)
28
Sub Brand
Pan-Net®
Performance Level
Category 6A
Conductor Type
Solid
Cable Construction
U/UTP
Shield Type
Unshielded (UTP)
Plug Housing Material
Polycarbonate
Jacket Material
LSZH Material
Connector 1 Type
Modular Plug
Connector 2 Type
Modular Plug
Overall Length (ft.)
19.7
Overall Length (m)
6
Nominal Cable Outside Diameter (In)
0.185
Nominal Cable Outside Diameter (mm)
4.7
Wiring Scheme
RJ45/T568B
Maximum Operating Temperature (°C)
75
Maximum Operating Temperature (°F)
167
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Maximum Storage Temperature (°C)
70
Maximum Storage Temperature (°F)
158
Minimum Storage Temperature (°C)
-40
Minimun Storage Temperature (°F)
40
Boot Color
Clear
Color
Red
Flammability Rating
CM/LSZH
Standards Met
Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant.
IEC Variant
60603-7
PoE Compatibility
PoE
Plug Type
8 Position
RapidID™ Enabled
Yes
Part Features
100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch

Data Sheet
