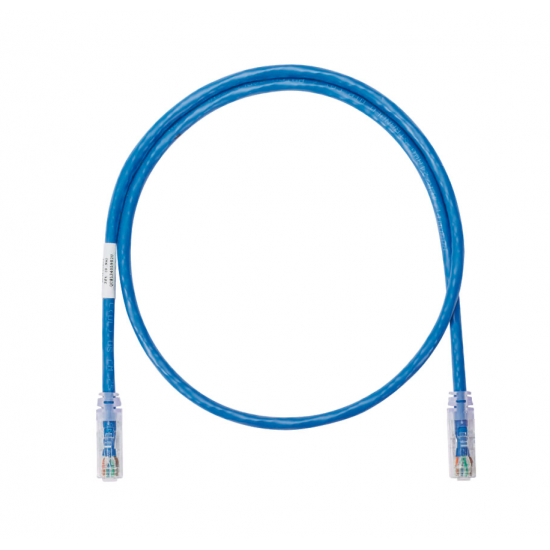

Panduit Netkey Cat6A Patch Cord, CM/LSZH, Blue, 5 meter

Panduit Netkey Cat6A Patch Cord, CM/LSZH, Blue, 5 meter
Panduit Netkey Cat6A Patch Cord, CM/LSZH, Blue, 5 meter
Based on 0 reviews. - Write a review
S$1.99
Ex Tax: S$1.83
  • Stock: 1
  • Model: NK6APC5MBU
Add to Cart
Buy Now Question
Add to Wish List Compare this Product

Connect your devices with speed and reliability using our Cat 6A UTP patch cord. This durable cable is perfect for your networking needs.



Sub Brand
NetKey®
Application
Used in all work area outlets and patch panels; wired to be compatible with both T568A and T568B wiring schemes. Suitable for Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), and 1000BASE-T (Gigabit Ethernet); 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM ; Token Ring 4/16; and Voice over internet protocol (VoIP)
Conductor Gauge
26 AWG
Performance Level
Category 6A
Conductor Type
Stranded
Cable Construction
U/UTP
Shield Type
Unshielded (UTP)
Plug Housing Material
Polycarbonate
Jacket Material
LSZH Material
Environment
Indoor
Connector 1 Type
Modular Plug
Connector 2 Type
Modular Plug
Overall Length (ft.)
16.4
Overall Length (m)
5
Nominal Cable Outside Diameter (In.)
0.25
Nominal Cable Outside Diameter (mm)
6.4
Wiring Scheme
RJ45/T568B
Maximum Operating Temperature (°C)
60
Maximum Operating Temperature (°F)
140
Minimum Operating Temperature (°C)
-10
Minimum Operating Temperature (°F)
14
Maximum Storage Temperature (°C)
70
Maximum Storage Temperature (°F)
158
Minimum Storage Temperature (°C)
-40
Minimum Storage Temperature (°F)
-40
Boot Color
Clear
Color
Blue
Flammability Rating
CM/LSZH
Standards Met
Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz, Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A (formerly FCC Part 68); contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant
IEC Variant
60603-7
PoE Compatibility
PoE/PoE+/PoE++
Plug Type
8 Position
RapidID™ Enabled
No
Part Features
100% performance tested for wiremap, NEXT, and return loss, Integral pair manager, Patented tangle free latch, Slender strain relief boot with a variety of colors and lengths available.
